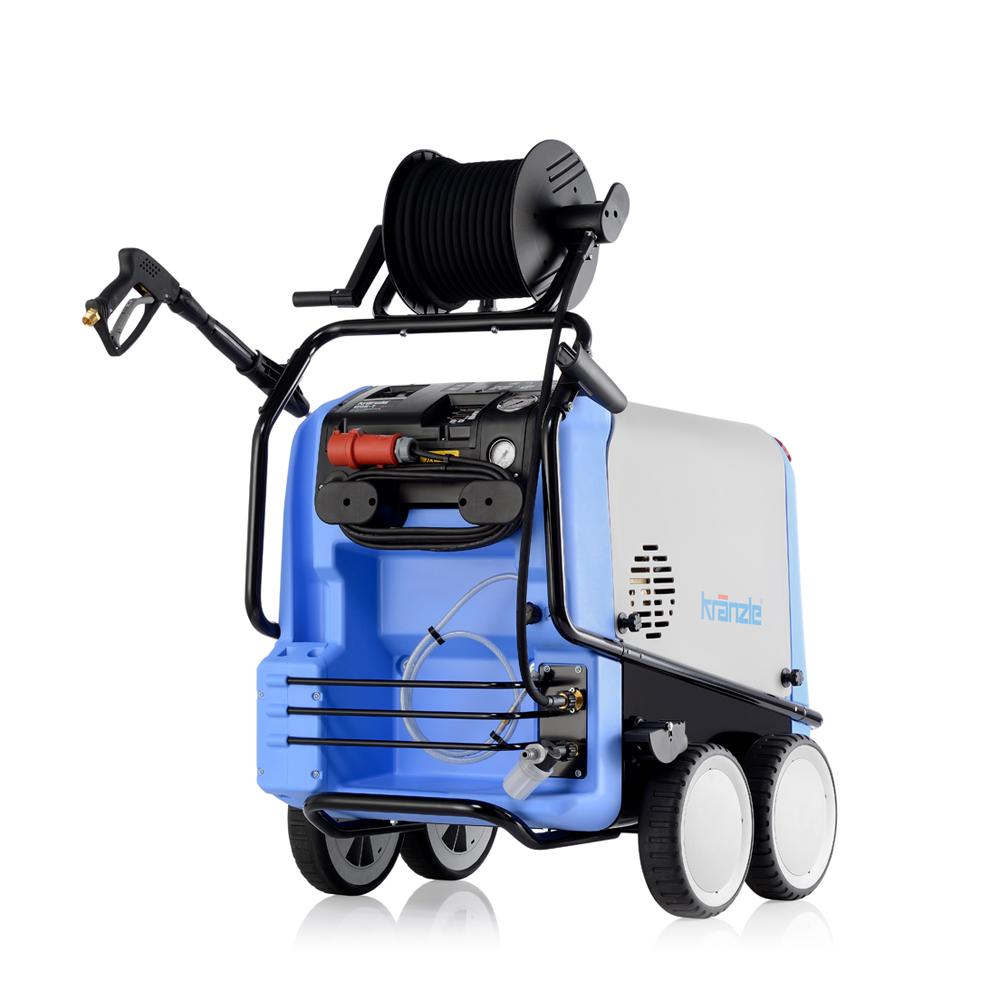

Kranzle Mobile Hot Water High Pressure Cleaner
HP09
Hot Water High Pressure Machine
- Origin: Germany
- Warranty: 1
- Brand Name: Kraenzle
- All-terrain chassis

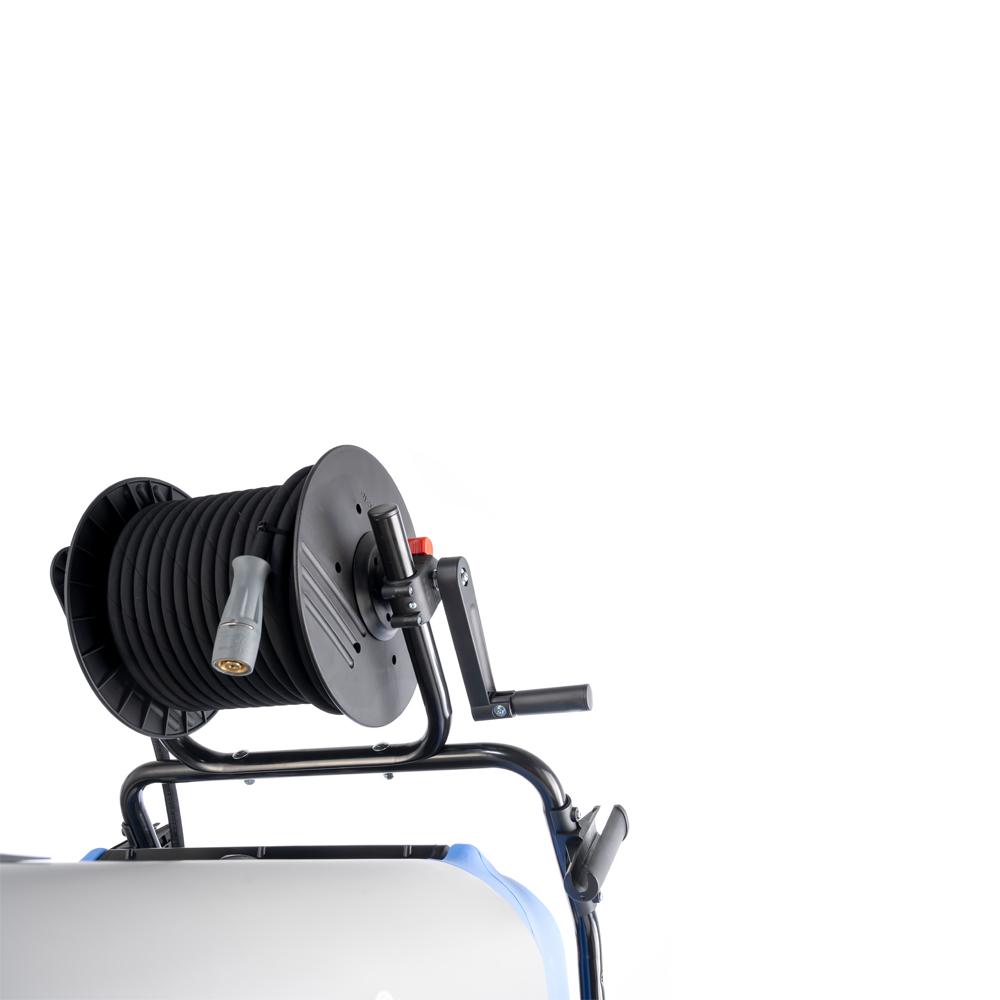

- Optional: integrated hose reel with folding crank handle
- 20 m high-pressure hose (with hose reel)
- 10 m high-pressure hose (without hose reel)
- Pressure regulation: working pressure infinitely variable
- Total stop system with delayed motor cut-off

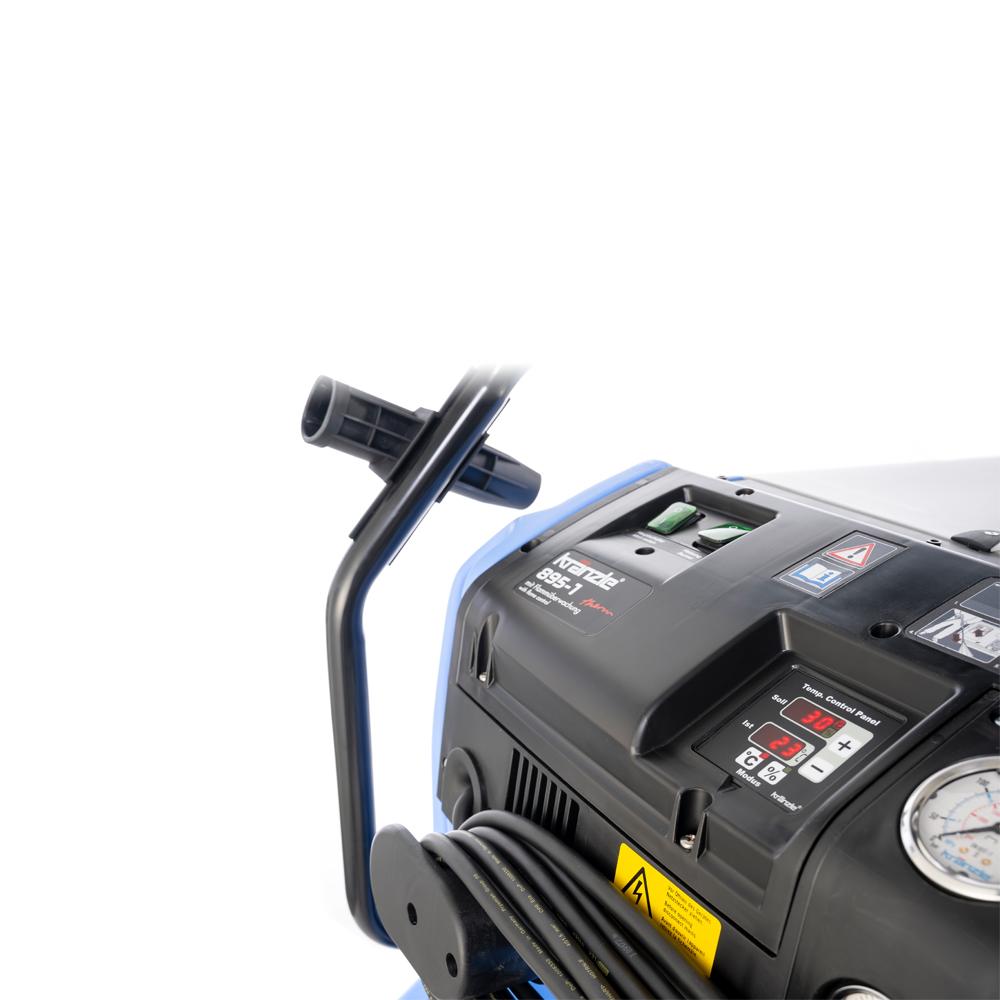

- Clearly arranged control panel to regulate the water temperature
- 7.5 m connection cable with a cable winder
- Organization system
- Impact protection
- Safety shut-off
- Flow monitoring
- Combustion chamber pre-ventilation
- Optical flame monitoring system
- Safety thermostat
- 4-fold safety system with overload protection
- Burning stop in case of fuel oil shortage
- Detergent suction
- Removable bonnets to protect the mechanical components
- Parking brake for a secure hold
- Water inlet filter
- Operating hours counter
| Operating Pressure Adjustable | 30-195 bar / 3-19.5 MPa |
| Max. Admissible Overpressure | 215 bar / 21.5 MPa |
| Connected Load (V / ~ / Hz / A) | 400V / 3~ / 50Hz / 12A |
| Motor Speed | 1400 RPM |
| Water Output | 14.9 Litters/minute | 895 Litters/hour |
| Power Intake / Power Output | 6.4 / 5.5 kW |
| Volume Water Tank | 4 Litters |
| Hot Water Output Adjustable | 12-86 C |
| Steam Level | 155 C |
| Heating Output | 65 kW |
| Fuel Tank | 35 Litters |
| Power Supply Cable | 7.5 Meters |
| Dimensions (L x W x H) | 105 x 80 x 130 cm |
| Weight | 223 kg |
| Product Brochure | Download |
